CNN — Convolutional Neural Networks

Exam Importance

MUST | Every exam has a CNN calculation question (2025 Q6, 2024 Q6, Practice Q7)

Feynman Draft

Imagine you're looking at a photo and trying to find a cat. You don't examine every pixel individually — your eyes scan small regions looking for patterns: edges, then curves, then ears, then a face. A CNN works exactly like this.

A CNN（卷积神经网络） slides small "windows" (filters/kernels（卷积核/滤波器）) across the image. Each filter detects a specific pattern:

  • Layer 1 filters: detect simple edges (horizontal, vertical, diagonal)
  • Layer 2 filters: combine edges into shapes (corners, curves)
  • Layer 3+ filters: combine shapes into objects (ears, eyes, faces)

After sliding filters, we shrink the image with pooling（池化） (like zooming out) to focus on "where" a pattern exists rather than its exact pixel position.

Toy Example: A 5x5 image with a 3x3 filter（特征图 = feature map）

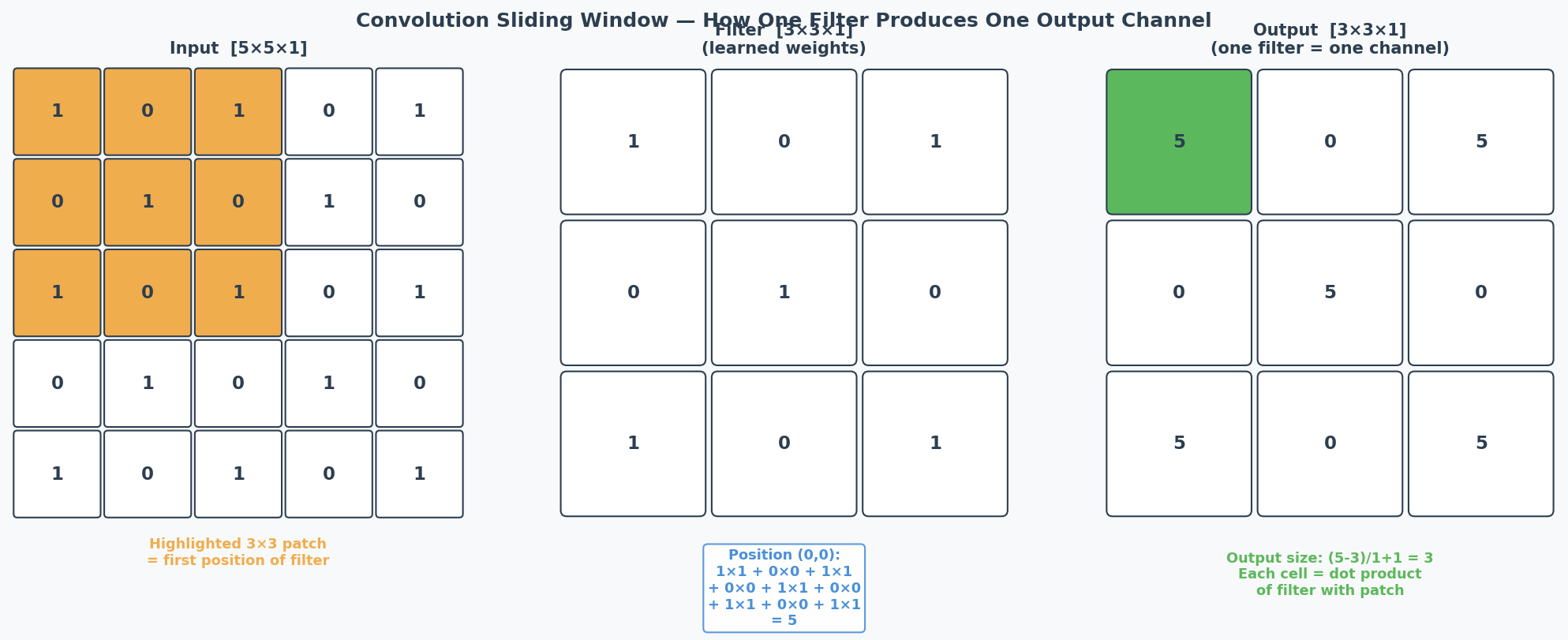

Convolution Sliding Window — step by step

Common Misconception: "More filters = bigger output feature map." NO — more filters increases the DEPTH (channels), not the spatial dimensions. Spatial size depends on kernel size, stride, and padding.

Core Intuition: CNN = sliding pattern detector. Shallow layers find edges, deep layers find objects.

Architecture Overview

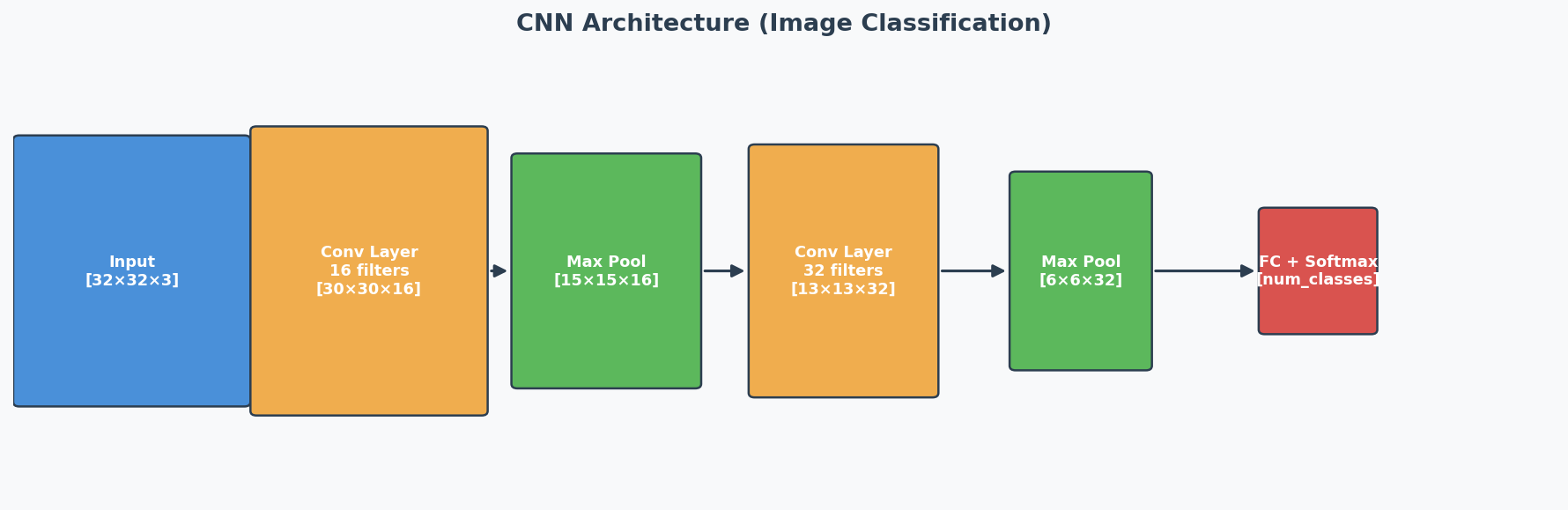

CNN Architecture

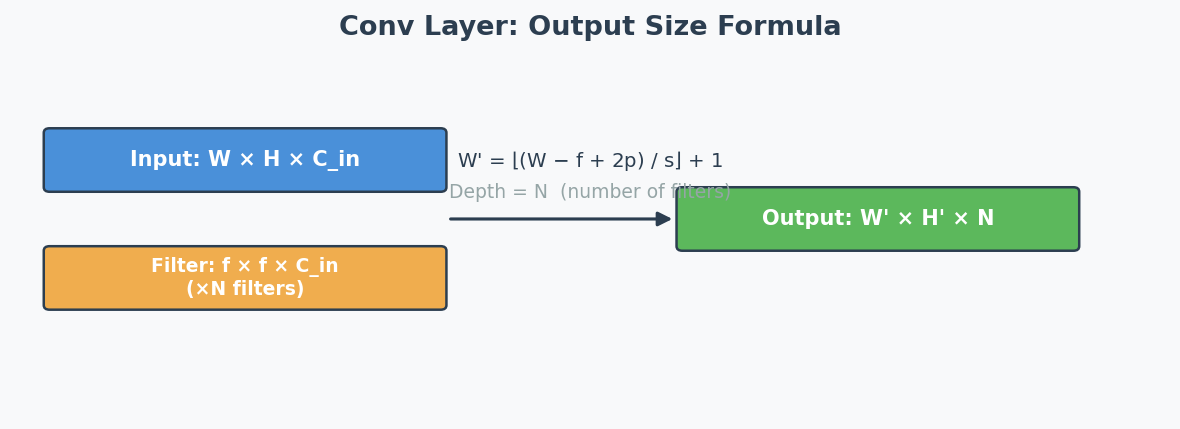

Conv Output Formula

The Two Formulas You MUST Memorize

Formula 1: Convolution Output Size

$$\text{output} = \left\lfloor \frac{n + 2p - f}{s} \right\rfloor + 1$$

Where:

  • $n$ = input spatial dimension (height or width)
  • $p$ = padding（填充） (valid = 0, same = computed so output = input)
  • $f$ = filter/kernel size
  • $s$ = stride（步幅）

Output depth = number of filters $n'_C$

Formula 2: Pooling Output Size

$$\text{output} = \left\lfloor \frac{n - f}{s} \right\rfloor + 1$$

Where:

  • $n$ = input spatial dimension
  • $f$ = pool kernel size
  • $s$ = stride (usually = f)

Output depth = same as input depth (pooling doesn't change channels!)

Key difference: Pooling has NO padding (p=0 always).

Padding Types

TypeMeaningFormula Effect
Valid padding（无填充）No padding, p = 0Output shrinks
Same padding（等尺寸填充）Pad so output spatial size = input spatial size$p = (f-1)/2$ when $s=1$

Same padding shortcut: When stride = 1 and same padding → output spatial dimensions = input spatial dimensions. Just change the depth to the number of filters.

Worked Example: 2025 Q6 (The Exact Exam Question)

Architecture:

  • Input: [35, 35, 3]
  • Conv1: 10 filters, kernel=7, stride=2, valid padding
  • MaxPool1: kernel=2, stride=2
  • Conv2: 20 filters, kernel=3, stride=1, same padding
  • MaxPool2: kernel=2, stride=2
  • FC layer: ? inputs, 10 outputs

Step-by-step:

Layer: Conv1 (valid, p=0)
  Input:  [35, 35, 3]
  Calc:   (35 + 2*0 - 7) / 2 + 1 = 28/2 + 1 = 14 + 1 = 15
  Output: [15, 15, 10]    ← 10 from number of filters

Layer: MaxPool1
  Input:  [15, 15, 10]
  Calc:   (15 - 2) / 2 + 1 = 13/2 + 1 = 6.5 + 1 = 7.5 → floor = 7
  Output: [7, 7, 10]      ← depth unchanged

Layer: Conv2 (same padding, stride=1)
  Input:  [7, 7, 10]
  Calc:   same padding + stride 1 → spatial stays same
  Output: [7, 7, 20]      ← 20 from number of filters

Layer: MaxPool2
  Input:  [7, 7, 20]
  Calc:   (7 - 2) / 2 + 1 = 5/2 + 1 = 2.5 + 1 = 3.5 → floor = 3
  Output: [3, 3, 20]      ← depth unchanged

Flatten（展平）: 3 × 3 × 20 = 180

Answer: (ii) 180 ✓

Worked Example: 2024 Q6

1) Conv: Input [50,50,5], ten 5×5×5 filters, stride=3, padding=0

(50 + 2*0 - 5) / 3 + 1 = 45/3 + 1 = 15 + 1 = 16
Output: [16, 16, 10]

2) AvgPool: Input [50,50,5], 5×5 filter, stride=5

(50 - 5) / 5 + 1 = 45/5 + 1 = 9 + 1 = 10
Output: [10, 10, 5]   ← depth stays 5!

3) MaxPool: Same answer as AvgPool! Max vs average only changes VALUES, not dimensions.

Worked Example: Practice Q7

Given: Input [21,21,3] → Conv (no padding, s=2) → Output [9,9,100]

Find: n'C, f, nC

  • n'C = 100 (depth of output = number of filters)
  • f: (21 + 0 - f)/2 + 1 = 9 → (21 - f)/2 = 8 → 21 - f = 16 → f = 5
  • nC = 3 (depth of input = filter width/depth)

Edge detection question: Early layers (close to input) detect edges because they see small local regions (receptive field（感受野）). Deeper layers combine these into complex features (shapes → objects).

Key Facts to Remember

FactDetail
Conv changes depthOutput depth = number of filters
Pooling preserves depthOutput depth = input depth
Max vs Avg poolingSame output SIZE, different values
Valid paddingp = 0, output shrinks
Same padding (s=1)Output spatial size = input spatial size
Floor functionWhen division isn't exact, round DOWN
Filter depthMust match input depth (filter is 3D: f × f × input_channels)

中文思维 → 英文输出

中文思路考试英文表达
先写公式再代入数字"Using the formula: output = floor((n + 2p - f) / s) + 1, substituting n=35, p=0, f=7, s=2: (35-7)/2 + 1 = 15."
池化不改变深度"Pooling reduces the spatial dimensions while preserving the depth (number of channels)."
最大池化和平均池化输出尺寸一样"Max pooling and average pooling produce outputs with the same dimensions; only the values differ."
Same padding时空间尺寸不变"With same padding and stride 1, the output spatial dimensions match the input."
输出深度等于滤波器数量"The depth of the output equals the number of filters applied."

本章 Chinglish 纠正

Chinglish (避免)正确表达
"The output size is 15 times 15 times 10""The output dimensions are [15, 15, 10]"
"Pooling will change the channel""Pooling does not change the number of channels — only spatial dimensions are reduced"
"The filter number decides the deep""The number of filters determines the output depth (channels)"

Whiteboard Self-Test

  • Can you write both formulas from memory?
  • Can you compute: Input [28,28,1] → Conv(16 filters, k=5, s=1, valid) → ?
  • Can you compute: [24,24,16] → MaxPool(k=2, s=2) → ?
  • What's the difference between valid and same padding?
  • Why does max pooling not change the depth?
  • Which layers detect edges? Why?
